Summary0001049: [SWAN]Malfunction during booting sequence(HDMI and tick audible noise)
DescriptionHi Sean

We found malfunction during booting sequence.
Sometimes HDMI and sometimes tick audible noise, sometimes both of them.
I attached live file and waveform, log capture.
This issue was noticed from SKB, and they were worried because this issue is very critical.
Please investigate and solve with your SW team.

Best regards

Lonnie Kim
TagsNo tags attached.
Attach Tags

Relationships

related to 0001046 closed(SW) River Wong [SWAN] Tick Noise

Users monitoring this issue

User List (ALTech) SH Son , (ALTech) SY Yoon , (ALTech) Wooshin Kang , (ALTech) Younkwang Jung , (PM) Henry Chiou , (SW) Peter Chen , (SW) River Wong

Activities

(ALTech) Lonnie Kim

2020-12-10 10:13

developer

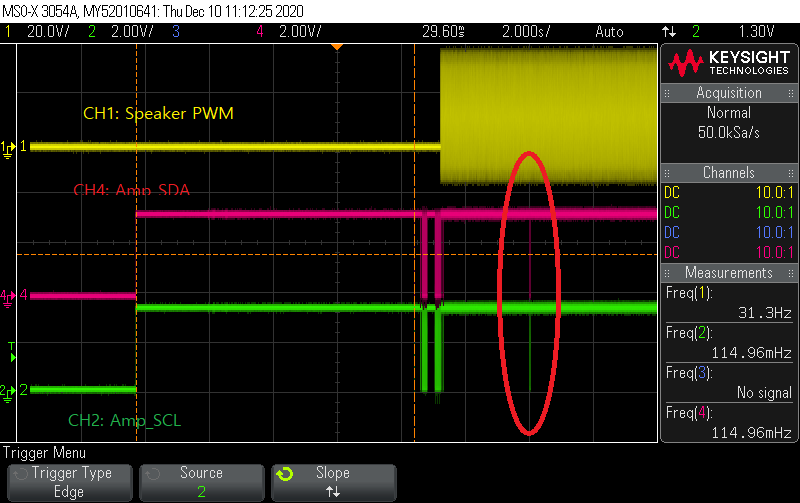

HDMI & Tick.png (47,821 bytes)
HDMI & Tick.png (47,821 bytes)
HDMI & Tick.txt (1,844 bytes)

All Planes are closed. cpcb0_ctrl2 = 0x40
console:/ $
TZ WARNING[TEE_TARegister:53] the TA (AAC) has been registered                              <-------This points
[    8981]CEC(SM): ----------SMCEC2SM: received cec msg:id=1----------
[    8988]I(SM): Got Appready packet from SoC CEC: 01  00  00  00  01  00  00  00
[    8995]I(SM): SM CEC:pcBody[4]=0x1.
[    8999]I(SM): SMCEC2SM: sending launch req to SOC: 06 00 00 00
[   14289]I(SM): @@@WIFIBTI$$$ gap: 512, wifibt_timer_id = 0



MDS Addr [0]: 0x65047000 0x65047000
MDS Addr [1]: 0x65049000 0x65049000
MDS Addr [2]: 0x6504b000 0x6504b000
console:/ $
Offline buffer address for plane 0 are 0x65313000, 0x65902000,                              <-------This points
All Planes are closed. cpcb0_ctrl2 = 0x40
TZ WARNING[TEE_TARegister:53] the TA (AAC) has been registered
[    9836]CEC(SM): ----------SMCEC2SM: received cec msg:id=1----------
[    9842]I(SM): Got Appready packet from SoC CEC: 01  00  00  00  01  00  00  00
[    9850]I(SM): SM CEC:pcBody[4]=0x1.
[    9853]I(SM): SMCEC2SM: sending launch req to SOC: 06 00 00 00
[   14646]I(SM): @@@WIFIBTI$$$ gap: 512, wifibt_timer_id = 0


MDS Addr [0]: 0x65047000 0x65047000
MDS Addr [1]: 0x65049000 0x65049000
MDS Addr [2]: 0x6504b000 0x6504b000
console:/ $
Offline buffer address for plane 0 are 0x65313000, 0x65902000,                              <-------This points
All Planes are closed. cpcb0_ctrl2 = 0x40
TZ WARNING[TEE_TARegister:53] the TA (AAC) has been registered
[    9822]CEC(SM): ----------SMCEC2SM: received cec msg:id=1----------
[    9828]I(SM): Got Appready packet from SoC CEC: 01  00  00  00  01  00  00  00
[    9836]I(SM): SM CEC:pcBody[4]=0x1.
[    9839]I(SM): SMCEC2SM: sending launch req to SOC: 06 00 00 00
[   14429]I(SM): @@@WIFIBTI$$$ gap: 512, wifibt_timer_id = 0
HDMI & Tick.txt (1,844 bytes)
20201210_103648_hdmi.mp4 (33,360,895 bytes)
20201210_103730_tick.mp4 (29,886,311 bytes)
20201210_103800_hdmi&tick.mp4 (27,324,265 bytes)
20201210_103855_tick.mp4 (31,814,933 bytes)
20201210_103922_tick.mp4 (37,346,306 bytes)
20201210_104102_tick.mp4 (27,656,806 bytes)

(SW) Jacky Chiang

2020-12-13 13:16

manager   ~0005437

Last edited: 2020-12-13 22:04

 After checking, we found that the audible pop noise is the same issue as in mantis 1046.

We made a workaround and committed to avoid this issue. But the root cause is still under investigation and we asked Synaptics to check and fix it.(Syna Jira-76)

(ALTech) Lonnie Kim

2020-12-14 10:40

developer   ~0005442

Hi, Jackey
Synaptics JIRA 76 was already cleared(How to check audio passthrough mode is enabled or disabled).
Could you check again?

Best regards

Lonnie Kim

(SW) Jacky Chiang

2020-12-14 20:14

manager   ~0005457

Last edited: 2020-12-14 20:25

 Hi Lonnie,

    Sorry. It's typo. The correct Jira number in Synaptics is SKBSBALT-79
However, could you provide occurrence percentage and TV monitor brand and model name ?

Thanks & Best regards,
Jacky

(HW) Sean Chiang

2021-12-24 17:39

developer   ~0009125

This issue should be no further actions. So I will close this issue. Thanks!
